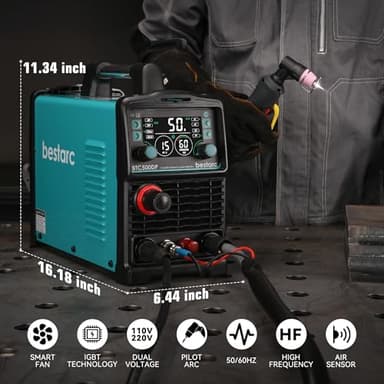

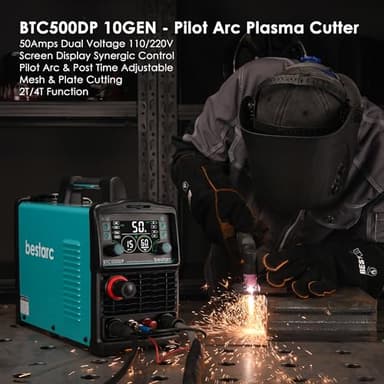

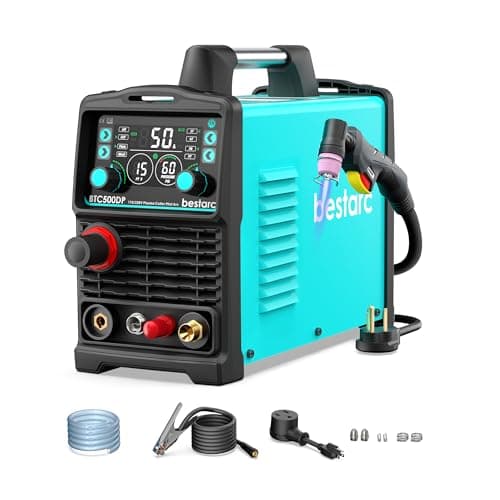

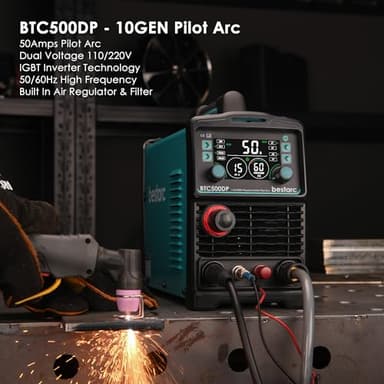

bestarc Plasma Cutter, [Pilot Arc] [Large LED Display] [Air Sensor Technology] 50Amps Cutter Machine 110/220V Dual Voltage IGBT Inverter 5/8 Inch Clean Cut, Post Flow 2T/4T for Home DIY BTC500DP 10GEN

Key Features

• ▶
  [Pilot Arc Function]: BTC500DP 10th plasma cutter has the pilot arc function. It is a high frequency non-touch arc starting mode. The torch head does not need to touch the metal plate. Added PA adjustable function, extended pilot arc maintenance time, reduce energy consumption in non-cutting work, reduce electrode burning, and extend service life
• ▶

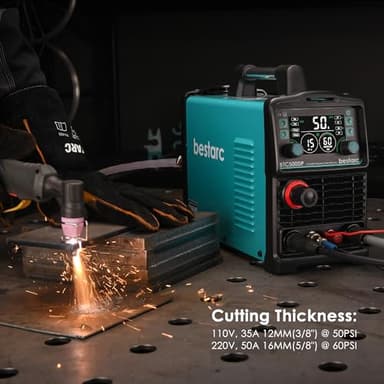

  [Cutting Thickness]: HF pilot arc plasma cutter boasts an automatic detection feature for input voltages of both 110V and 220V, 60% duty cycle single phase. The maximum cutting thickness of bestarc 50A plasma cutter can reach up to 3/4" @50A 220V 65PSI, while ideal clean cut at 1/2" @35A 110V 50PSI. The circuit breaker specifications require a 40A unit for 110V operation and a 30A unit for 220V. This versatile plasma cutter is ideal for use on materials including stainless steel, alloy steel, mild steel, copper, aluminum, etc
• ▶
  [Air Sensor Technology]: The air sensor built into the machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute
• ▶
  [Digital Screen Display]: The screen centrally display parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If plasma cutter cannot work, the screen comes with an error code system, making it easy to find out the problems
• ▶
  [PT/2T/4T/PA Function]: Post-flow cooling time ranging from 3 to 15s extends the torch head and consumables life. The 2T mode on the plasma cutter provides semi-automatic control torch trigger, while the 4T mode enables automatic trigger, free your finger. PA adjusted the time for the pilot arc. This bestarc plasma cutter BTC500DP 10GEN also includes a mesh cutting mode to solve the problem of arc breaking when cutting mesh
